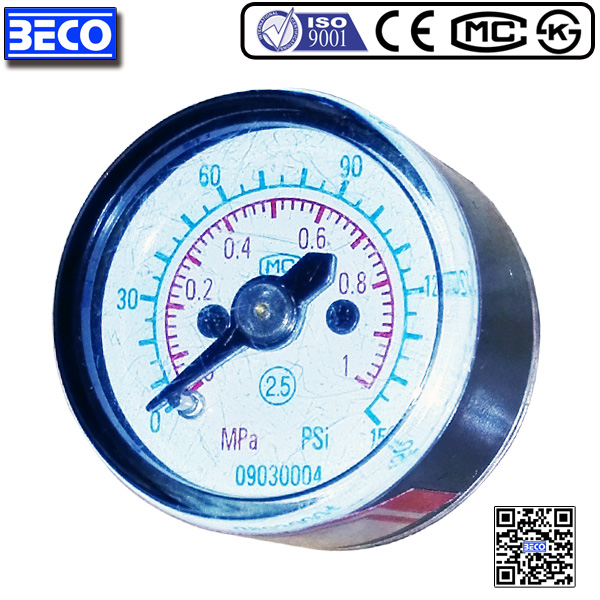

| (Y-25D) 25mm micro type pressure gauge |
Application:
* Hydraulic and pneumatic system;
* Pump, compressors, water systems, regulators and fire extinguisher;
* Suitable for fluid medium which does not clog connection port or corrode copper alloy.
Description:
BECO Y-25 series general type pressure gauges provide economical reliable service in a wide variety of application including pumps, compressors, oil industrial and etc.
Y series pressure gauges with the accuracy level of 2.0%, 2.5% of full scale . With the connectors in the center back.
Specifications:
|
Dimension size
|
1”(25 mm)
|
|
Pressure ranges
|
Pressure from 1 bar to 1000 Bar;
Or other equivalent unit of pressure or vacuum.
|
|
Working pressure
|
Steady:3/4 of full scale value;
Fluctuating:2/3 of full scale value;
Short:Full scale value.
|
|
Accuracy level
|
2.0% and 2.5%
|
|
Bourdon tube
|
Phosphor bronze
|
|
Movement
|
Stainless iron, brass
|
|
Windows
|
PC cover(together with case)
|
|
Bourdon tube
|
Vacuum 1 bar to 100 bar C-type;
100 bar to 1000 bar helical type.
|
|
Dial
|
Aluminum
|
|
Pointer
|
Aluminum, black painted
|
|
Case
|
Black ABS plastic
|
|
Configuration
|
Center back
|
|
Standard
|
EN837-1
|
Special features:
* Copper alloy wetted parts;
* ABS plastic case. |
