| 60 psi small dial tire pressure gauge |
Specifications:
|
Dimension size
|
1-1/2”, 2”, 2-1/2”, 3-1/2”, 4”, 6”
|
|
Pressure ranges
|
Vacuum to -1 Bar;
pressure 0-20 bar;
|
|
Working pressure
|
Steady:3/4 of full scale value;
Fluctuating:2/3 of full scale value;
Short:Full scale value.
|
|
Accuracy level
|
1.0%, 1.6%, 2.0% and 2.5%
|
|
Bourdon tube
|
Phosphor bronze
|
|
Movement
|
Stainless iron, stainless steel, brass
|
|
Windows
|
Glass, PC, Safety glass
|
|
Bourdon tube
|
Vacuum 1 bar to 100 bar C-type;
|
|
Dial
|
Aluminum
|
|
Pointer
|
Aluminum, PC
|
|
Case
|
Painted
steel,Chrome plated,ABS plastic
|
|
Thread
|
Kinds
air inlet for tire
|
|
Configuration
|
Center back, Lower back, Lower/bottom
|
|
Standard
|
EN837-1,
ANSI B40 Grade A/B
|
|
Products
Name
|
Model
|
Dim
|
Accuracy Level
|
Pressure range
|
Air inlet type
|
Mounting type
|
|
General tire pressure gauges
|
YT-40
|
1.5"
|
2.5
|
Range
0-15 bar
|
Universal,
Direct
|
Bottom
|
|
YT-50
|
2"
|
2
|
Range
0-15 bar
|
Universal,
Direct
|
Bottom
|
|
YT-60
|
2.5"
|
1.6
|
Range
0-15 bar
|
Universal,
Direct
|
Bottom
|
|
Tire pressure gauges with rubber
Pipe
|
YTS-50
|
2"
|
2
|
Range
0-15 bar
|
Universal,
Direct
|
Bottom
|
|
YTS-60
|
2.5"
|
1.6
|
Range
0-15 bar
|
Universal,
Direct
|
Bottom
|

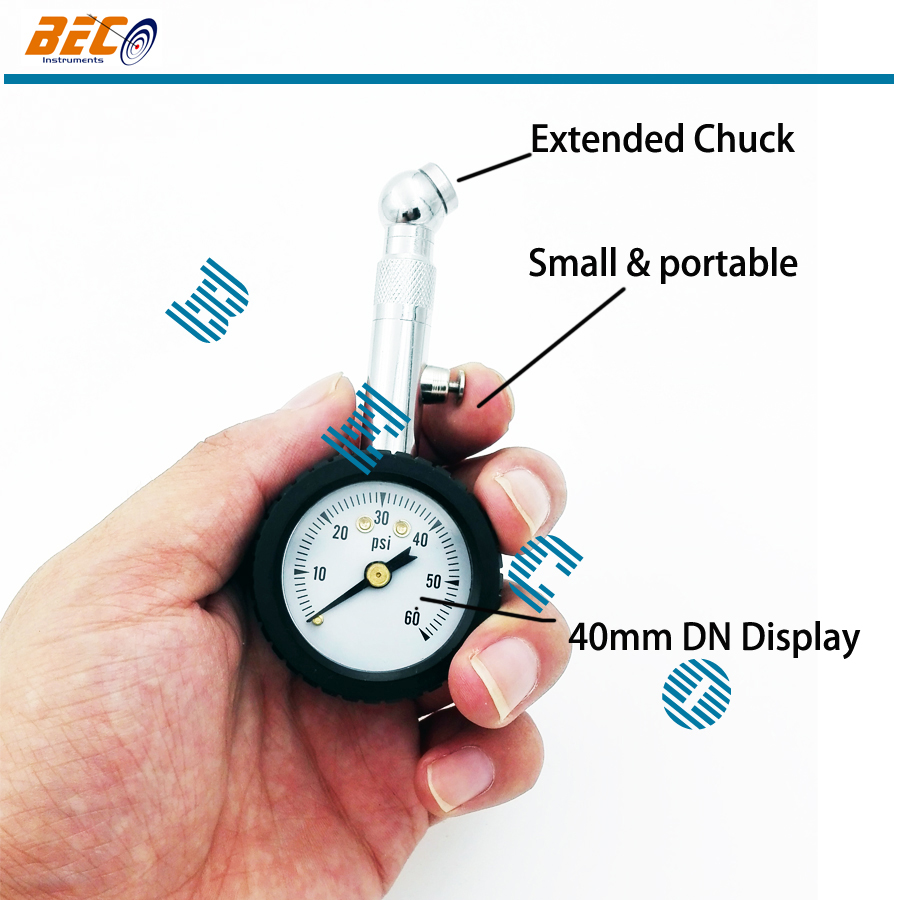

Producst show:

|
