Application:
*Liquid filled case for application with high dynamic pressure pulsations or vibration.
*Suitable for corrosive environments and gaseous or liquid media that will not obstruct the pressure system.
Description:

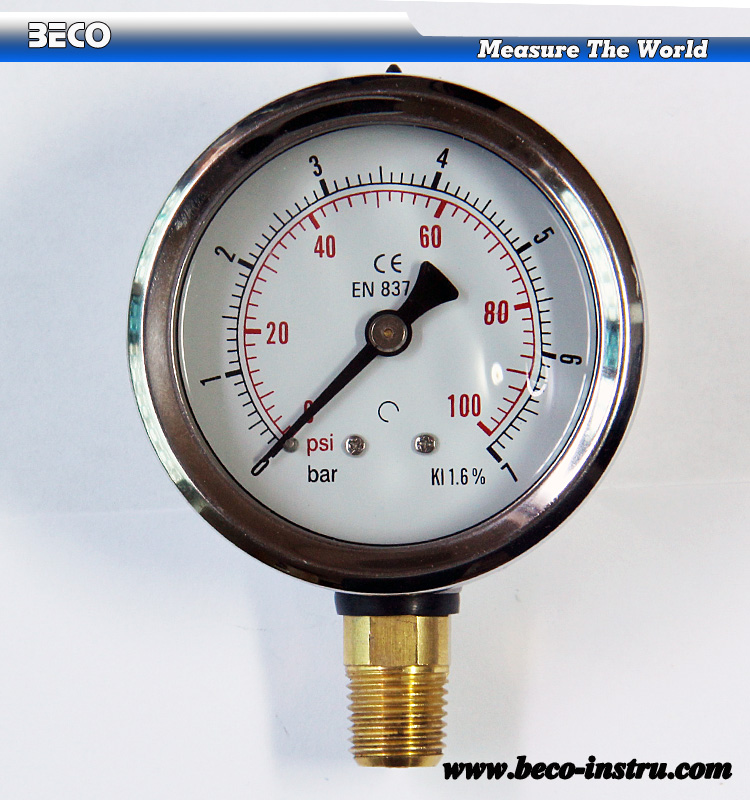

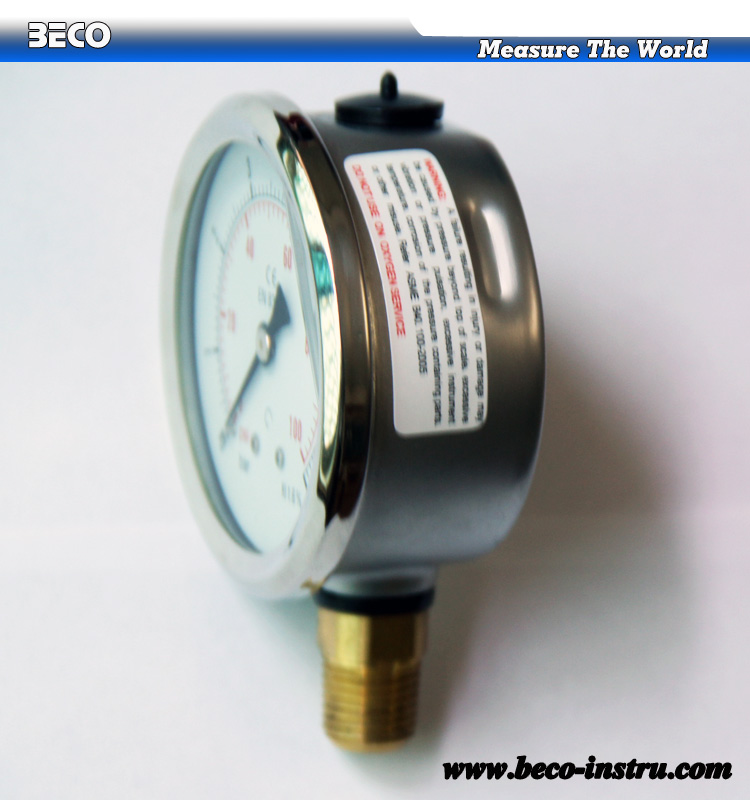

BECO YTN series pressure gauges provide economical reliable service in a wide variety of application including pumps, compressors, oil industrial and etc.
YTN series pressure gauges with the accuracy level of 1.0%, 1.6%, 2.0% and 2.5% of full scale . Gauges are available in 1-1/2”,2”, 2-1/2”, 3-1/2”,4”,6”, with the connectors in the center back and lower configurations.
Specifications:
|
Dimension size
|
1-1/2”,2”, 2-1/2”, 3-1/2”,4”,6”
|
|
Pressure ranges
|
Vacuum to -1 Bar;
Pressure from 0.025 bar to 1000 Bar;
Or other equivalent unit of pressure or vacuum.
|
|
Working pressure
|
Steady:3/4 of full scale value;
Fluctuating:2/3 of full scale value;
Short:Full scale value.
|
|
Accuracy level
|
1.0%, 1.6%, 2.0% and 2.5%
|
|
Bourdon tube
|
Phosphor bronze
|
|
Movement
|
Stainless iron, stainless steel, brass
|
|
Windows
|
Glass, PC, Safety glass
|
|
Bourdon tube
|
Vacuum 1 bar to 100 bar C-type;
100 bar to 1000 bar helical type.
|
|
Dial
|
Aluminum
|
|
Pointer
|
Aluminum, PC
|
|
Case
|
Stainless steel
|
|
Configuration
|
Center back, Lower back(4”), Lower/bottom
|
|
Oil/liquid
|
Glycerin, Silicone oil
|
|
Standard
|
EN837-1
|
Special specifications:

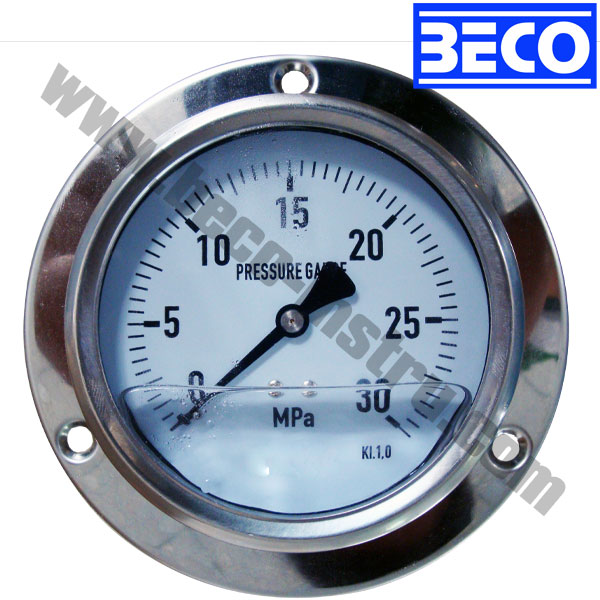

* Front flange makes the installation more steady
|
