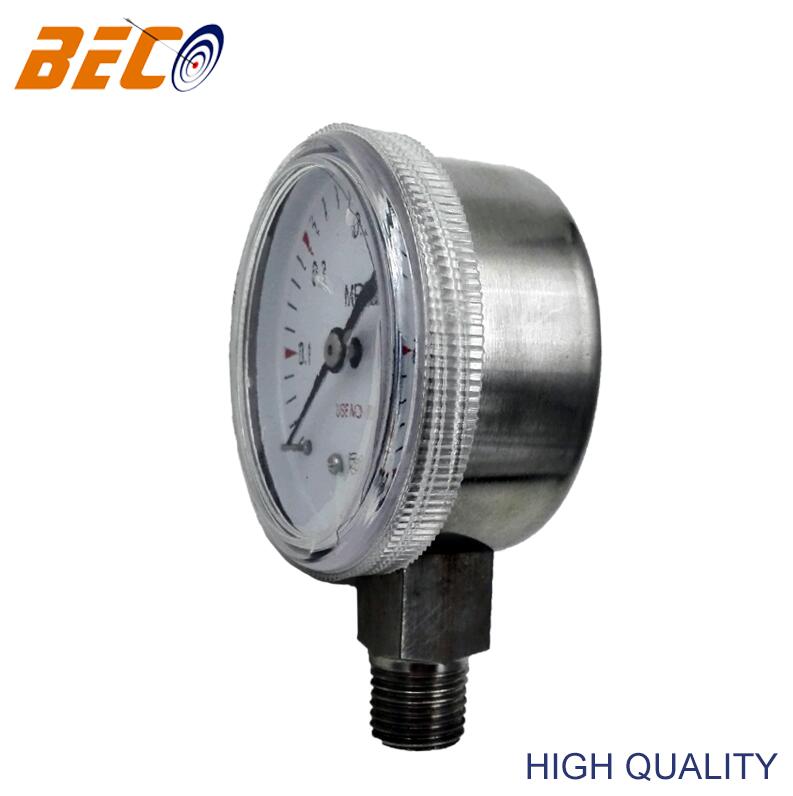

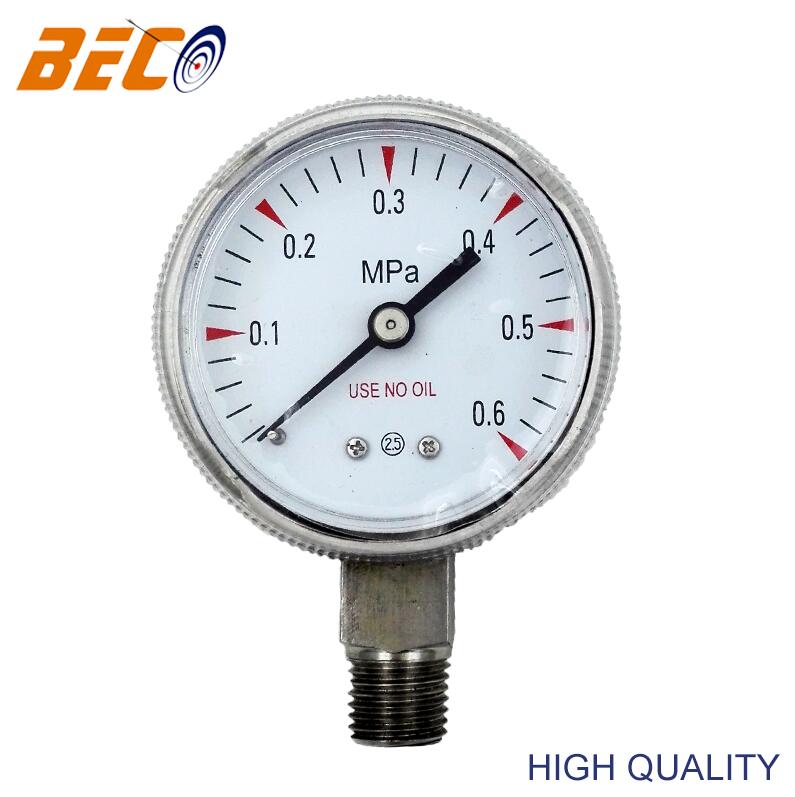

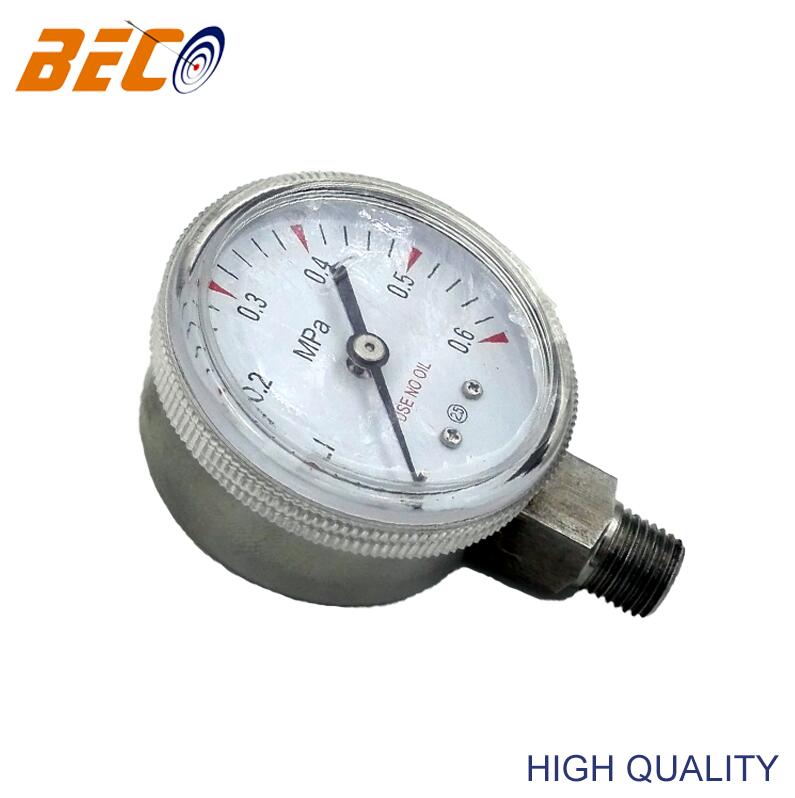

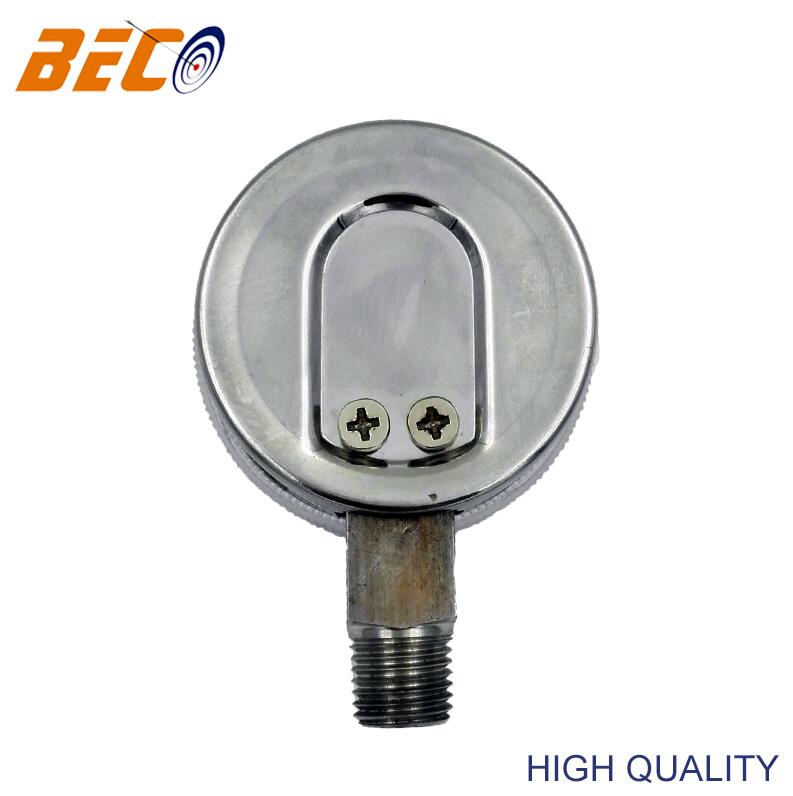

| (YBF-50A) Cutomized ss pressure gauge |
Specifications:
|
Dimension size
|
1-1/2”, 2”, 2-1/2”, 4”, 6”
|
|
Pressure ranges
|
Vacuum to -1 Bar;
Pressure from 1 bar to 1000 Bar;
Or other equivalent unit of pressure or vacuum.
|
|
Working pressure
|
Steady:3/4 of full scale value;
Fluctuating:2/3 of full scale value;
Short:Full scale value.
|
|
Accuracy level
|
1.0%, 1.6%, 2.0% and 2.5%
|
|
Bourdon tube
|
Stainless steel
|
|
Movement
|
Stainless iron, stainless steel
|
|
Windows
|
Glass, Safety glass
|
|
Bourdon tube
|
Vacuum 1 bar to 100 bar C-type;
100 bar to 1000 bar helical type.
|
|
Dial
|
Aluminum
|
|
Pointer
|
Aluminum, PC
|
|
Case
|
Stainless steel
|
|
Configuration
|
Center back, Lower back(4”), Lower/bottom
|
|
Standard
|
EN837-1
|
Special features:
* Solid-front stainless steel case;
* Excellent load-cycle stability and shock resistance;
* All stainless steel construction;
* Positive pressure ranges to 15000 PSI.

Production
& Factory
|
