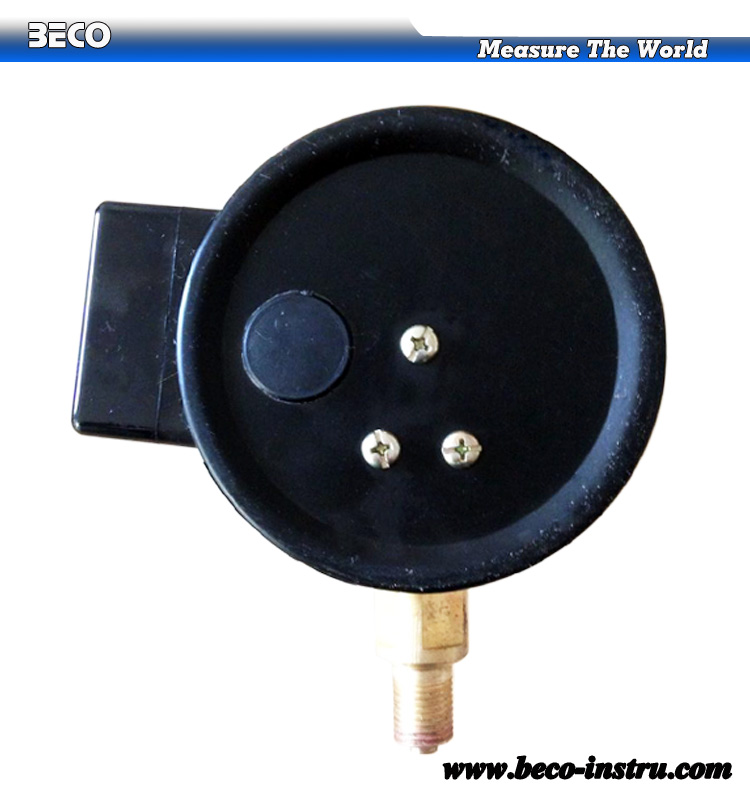

| (YX-100A)100mm general type electric contact pressure gauges switch |
Description:
YXC-100AElectrical alarm contact make or break an electric circuit depending on the position of the instrument’s pointer. Points of contact actuation are adjustable over the full extension for an adjustment key. Contact actuation is made when there is an upper or lower deviation of the set value by the instrument pointer.
Specification:
|
Dimension
|
4”(100 mm)
|
|
Accuracy
|
±1.6%F.S accuracy
|
|
Pointer
|
Black aluminum
|
|
Ranges
|
Vacuum to -1 Bar;
Pressure from 0.025 bar to 1000 Bar;
Or other equivalent unit of pressure or vacuum.
|
|
Window
|
PC
|
|
Movement
|
Phosphor bronze
|
|
Dial
|
White aluminum with black markings and design as per customer’s specification
|
|
Ambient temperature
|
-20...+60℃
|
|
Case
|
Black painted steel
|
|
Protection level
|
IP65
|
|
Configuration
|
Bottom
|
|
Connector
|
58, 59 alloy brass ; Thread as per clients’ specs
|
|
Contact details
|
380V AC/DC, 50 VA/30 watts, current not exceeded 1 Amp
|
|
Contact type
|
Double magnetic contact
|
|
