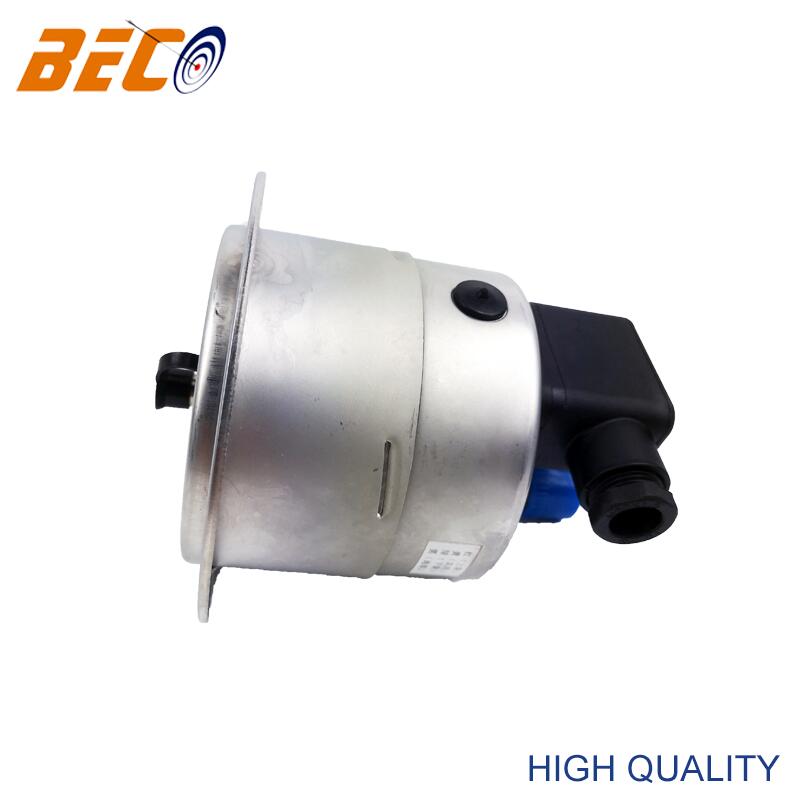

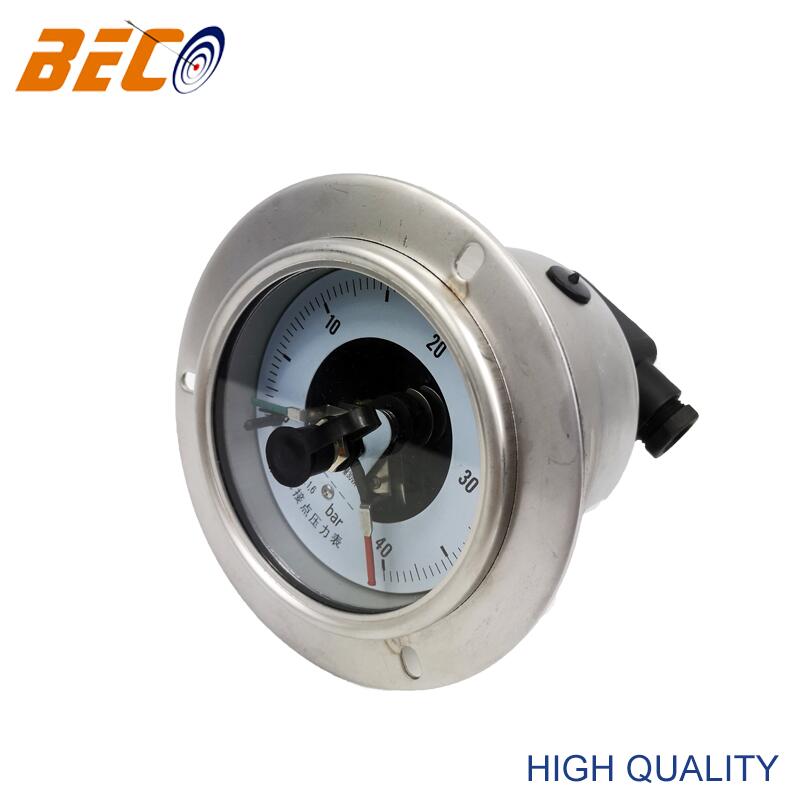

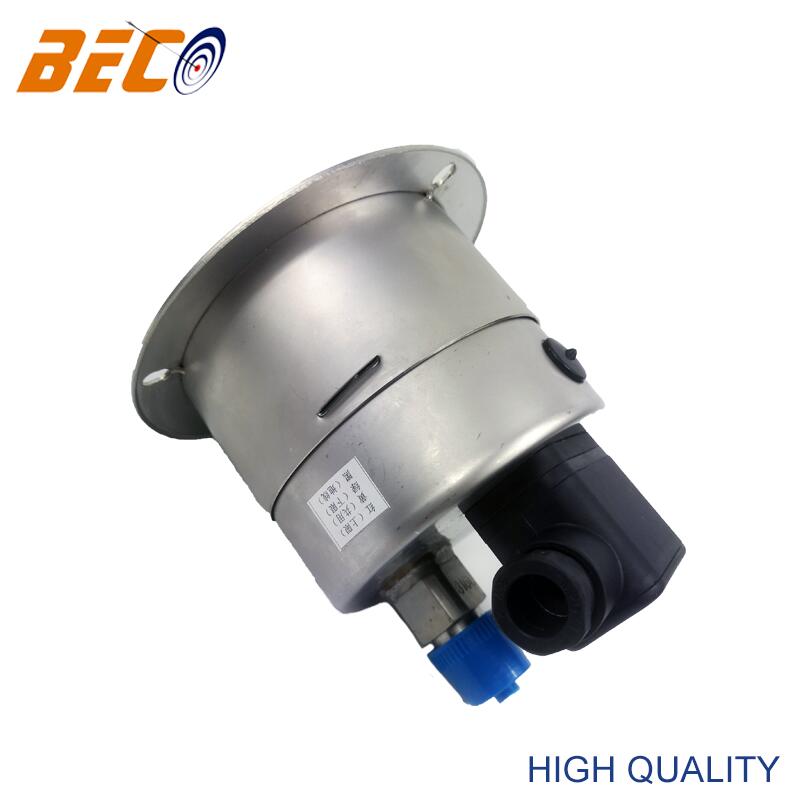

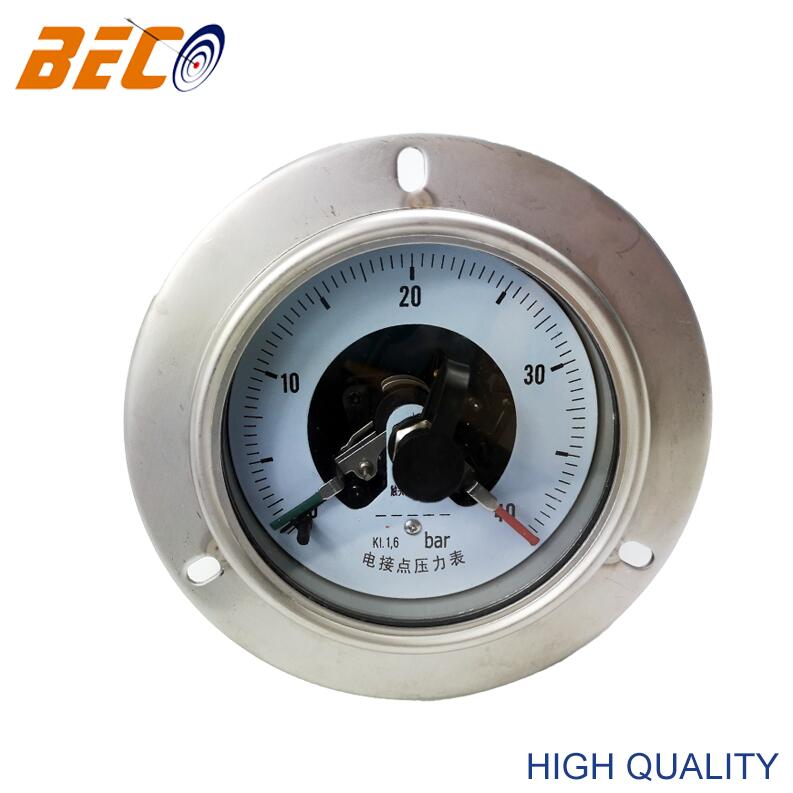

| (YBX-100) 100mm electric contact pressure gauges switch |
Description:
YBX-100AElectrical alarm contact make or break an electric circuit depending on the position of the instrument’s pointer. Points of contact actuation are adjustable over the full extension for an adjustment key. Contact actuation is made when there is an upper or lower deviation of the set value by the instrument pointer.
Specification:
|
Dimension
|
100 mm,150 mm
|
|
Accuracy
|
±1.0%F.S accuracy
|
|
Pointer
|
Black aluminum
|
|
Ring
|
Bayonet lock, stainless steel AISI 304 with oil seal
|
|
Ranges
|
Vacuum to -1 Bar;
Pressure from 0.025 bar to 1000 Bar;
Or other equivalent unit of pressure or vacuum.
|
|
Window
|
Safety glass, common glass
|
|
Movement
|
Stainless steel
|
|
Dial
|
White aluminum with black markings and design as per customer’s specification
|
|
Ambient temperature
|
-20...+60℃
|
|
Case
|
Fully welded stainless steel AISI 304
|
|
Protection level
|
IP65
|
|
Configuration
|
Bottom, back lower for both4”and6”
|
|
Connector
|
Stainless steel 316, 304 ; Thread as per clients’ specs
|
|
Contact details
|
380V AC/DC, 50 VA/30 watts, current not exceeded 1 Amp
|
|
Contact type
|
Double magnetic contact
|
